Corium - The Brick Tile Cladding System

Because higher standards are our standard.

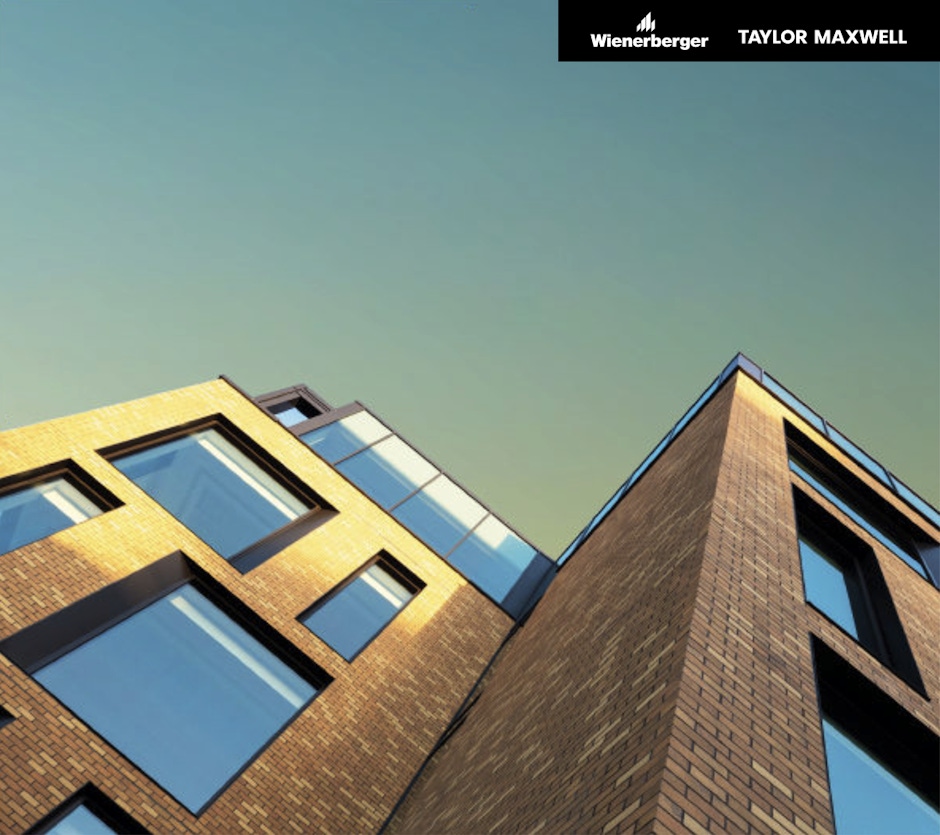

Building 4 3
In partnership with Wienerberger

An introduction to Corium

The Corium Brick Tile Cladding System, manufactured by Wienerberger and exclusively distributed by Taylor Maxwell, is a market leader in performance, style and safety. The product is fully BBA certified and as per section 7.1 of that document, in terms of behaviour in relation to fire, all system components are Class A1 as defined by national building regulations.

Our system is suitable for use on external masonry and timber, or the steel-frame substrate walls of new, existing and non-domestic buildings.

We've gone over and above to create a best-in class brick tile cladding system for the built environment.

Corium 03 Large

How does the system work?

The system comprises of fired clay extruded brick tiles, which are clipped onto longitudinally interlocking steel backing sections. The vertical and horizontal joints between the tiles are pointed with Parex Historic Mortar KL.

The steel backing sections are profiled to suit the brickwork coursing height, mounted horizontally or vertically and then mechanically fixed to the supporting subframe.

For lightweight steel frame and masonry substrates, the subframe is generally aluminium, but for timber-frame structures this would be timber battens.

Mechanically fixed, simple and quick.

Over & Above on Efficiency.

The Brick Tile Cladding System.

Building 5

Design flexibility

The system offers a wide range of options for both architects and specifiers

  • Over 2,500 brick tile finishes available, including choices of colour and texture
  • The option to develop bespoke blends for projects
  • Variable tile height options of 50mm, 65mm, 140mm and 215mm
  • Can be installed horizontally or vertically, including soffits and ceilings
Use our colour selector
Building 3

Certification

A fundamental part of our Brick Tile Cladding System

  • BBA approved and certified
  • Fire tested and approved, in accordance with EN 13501-1 and A1:2009
  • In the opinion of the BBA (page 3 of the certificate), Corium can satisfy or contribute to satisfying the relevant requirements in relation to NHBC standards
View the BBA certificate
Building 2

Performance

The system delivers:

  • A design life in excess of 35 years in accordance with section 10 of the BBA certificate
  • No build limit, with installations on projects in the UK up to 28 storeys
  • Simple mechanical fix installation
Speak to one of our team

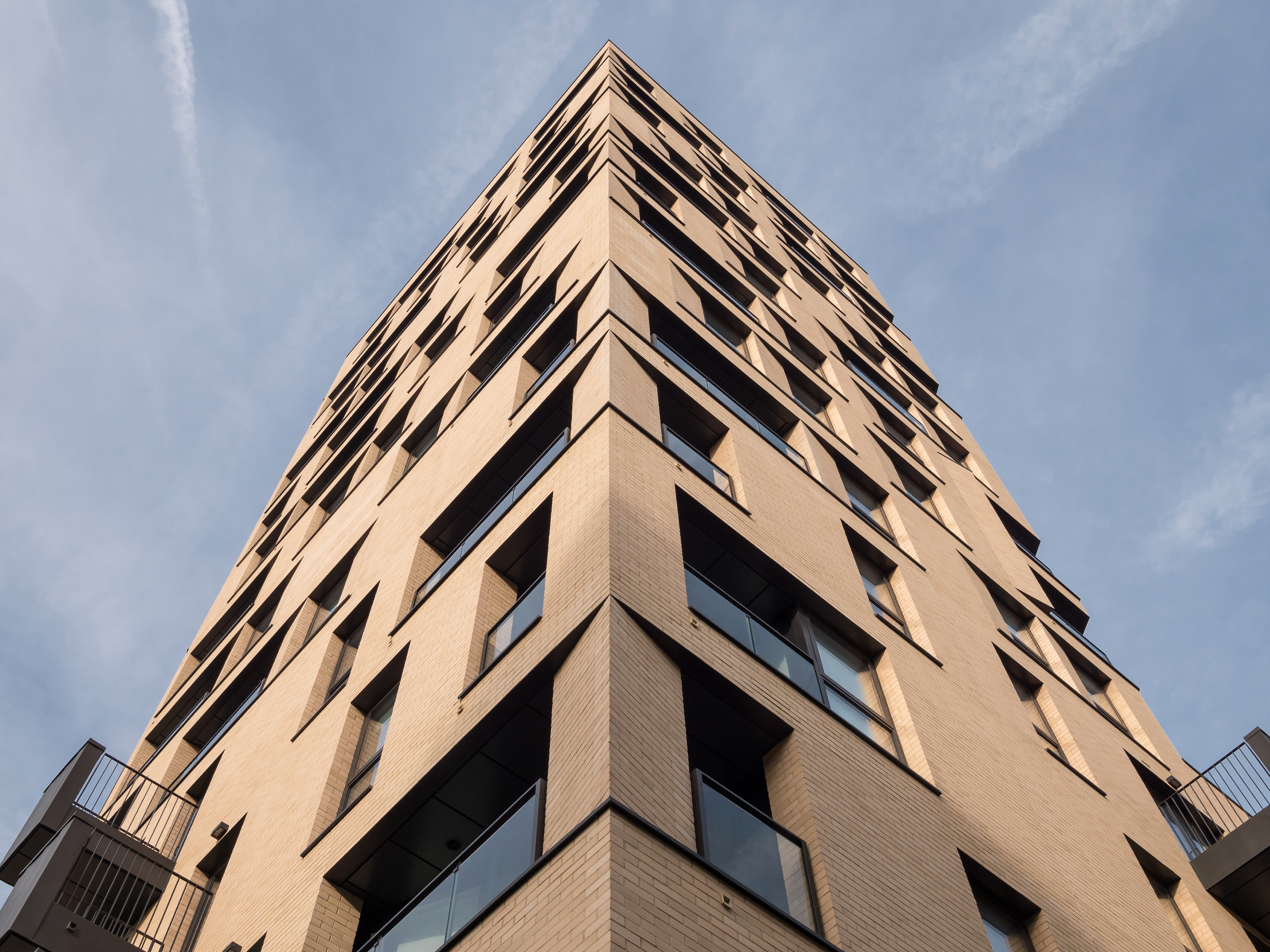

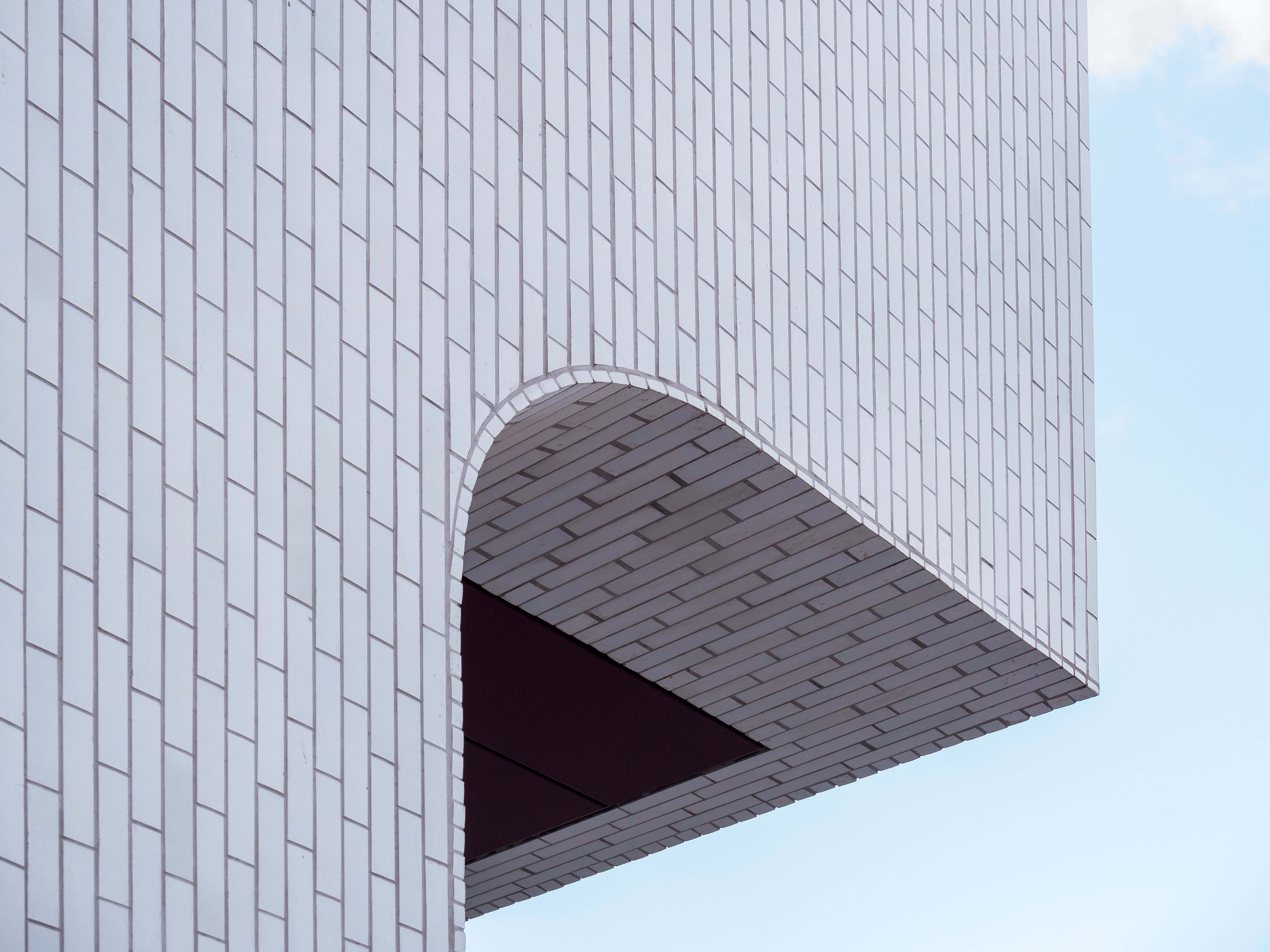

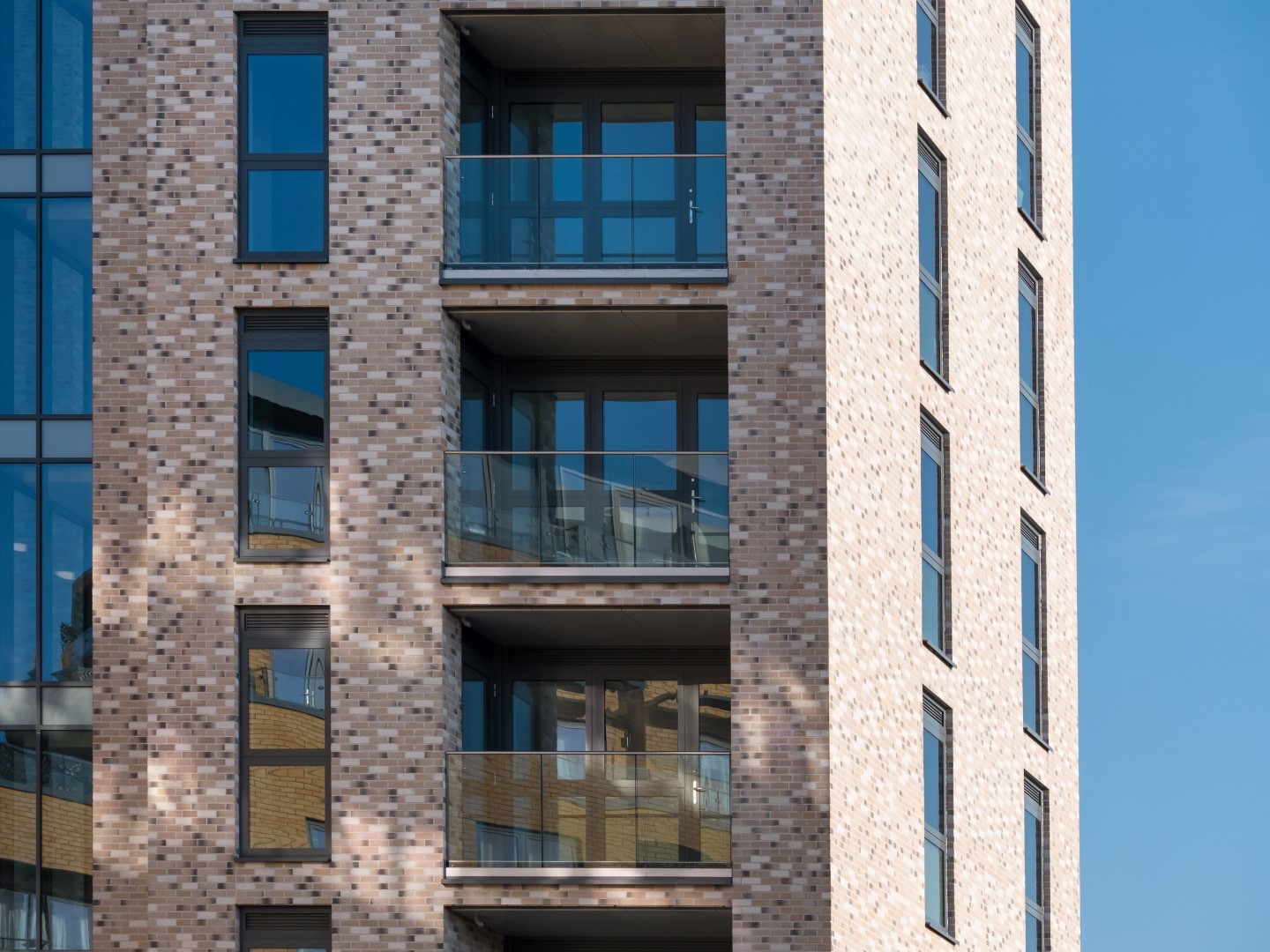

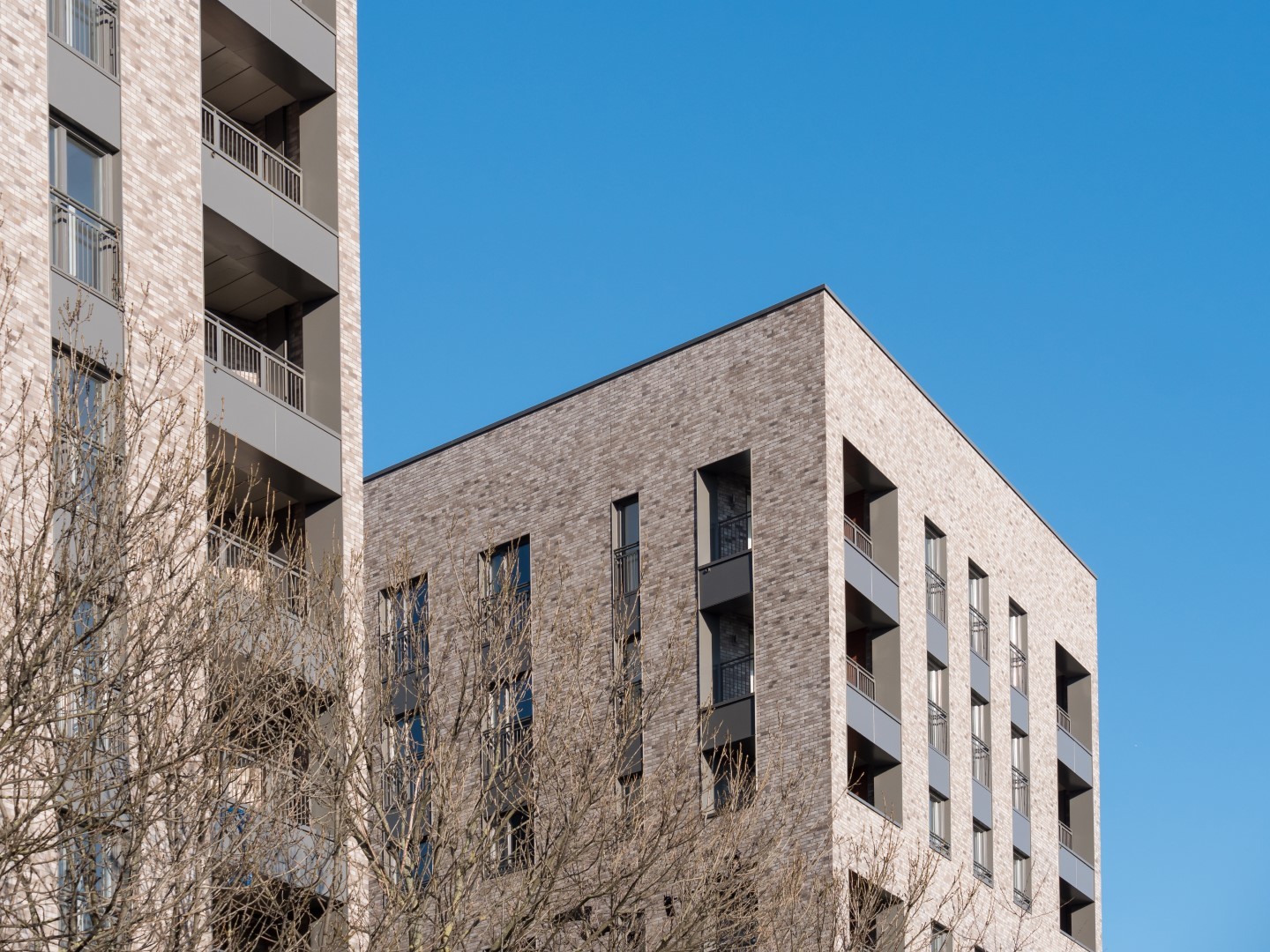

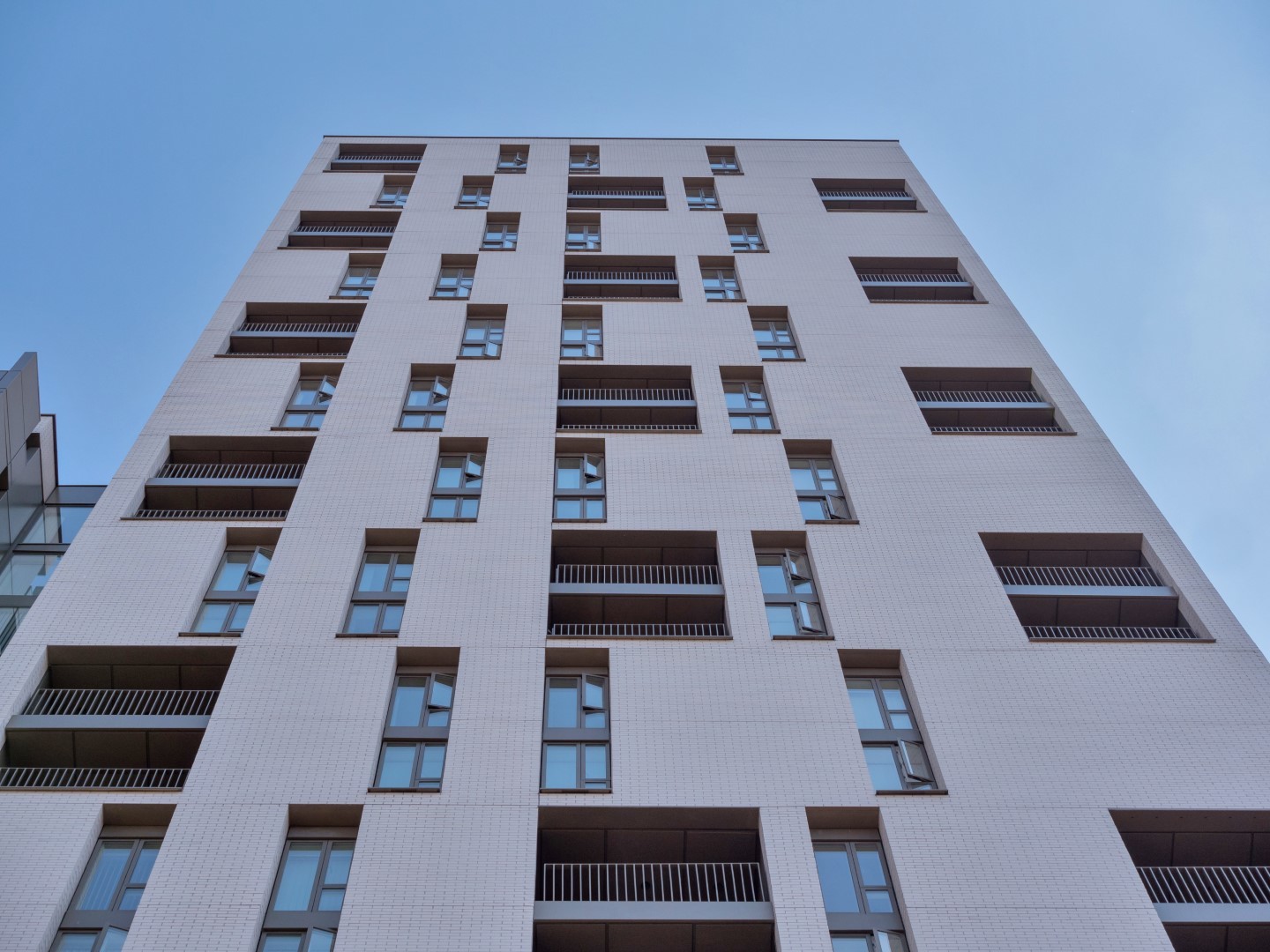

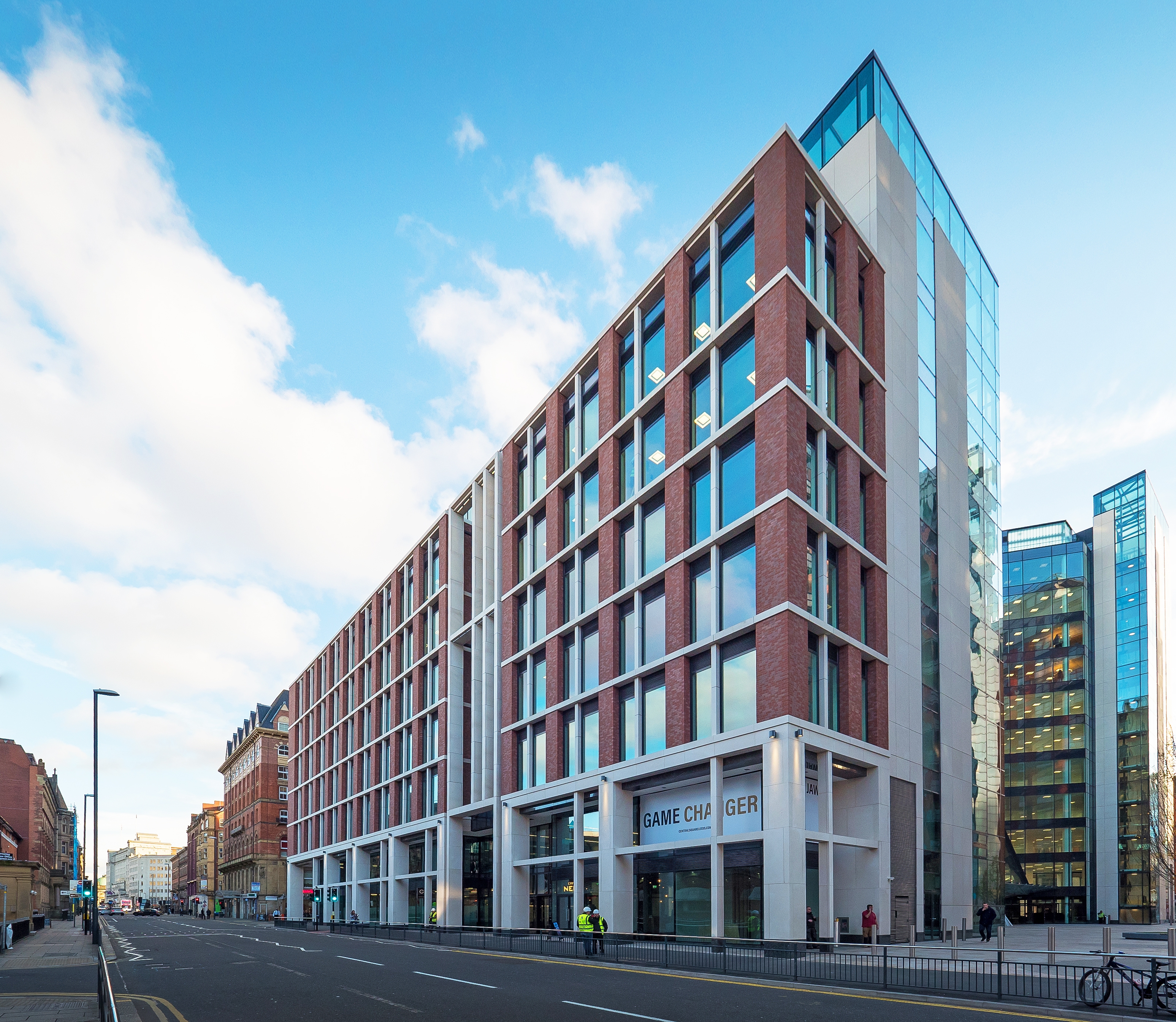

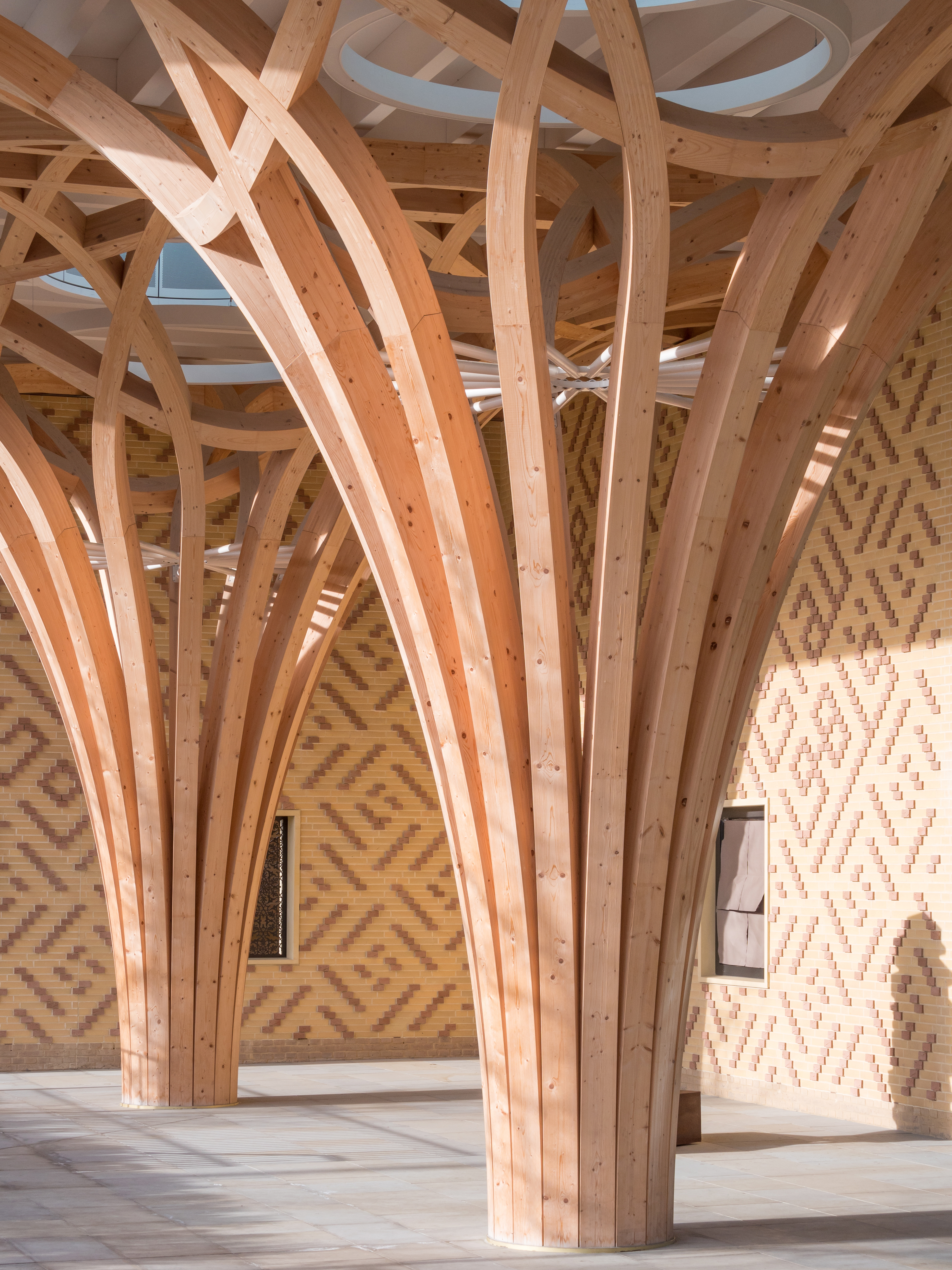

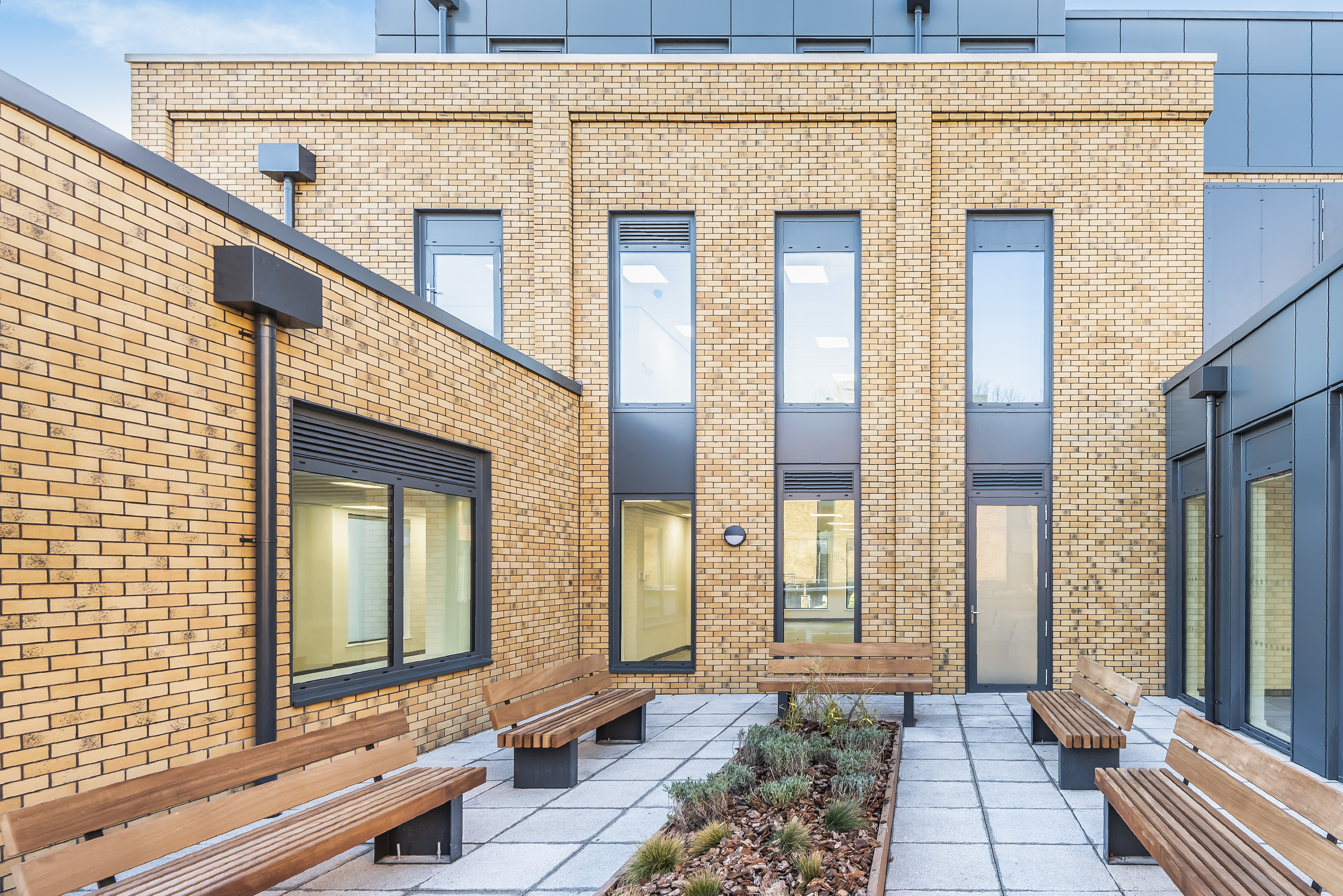

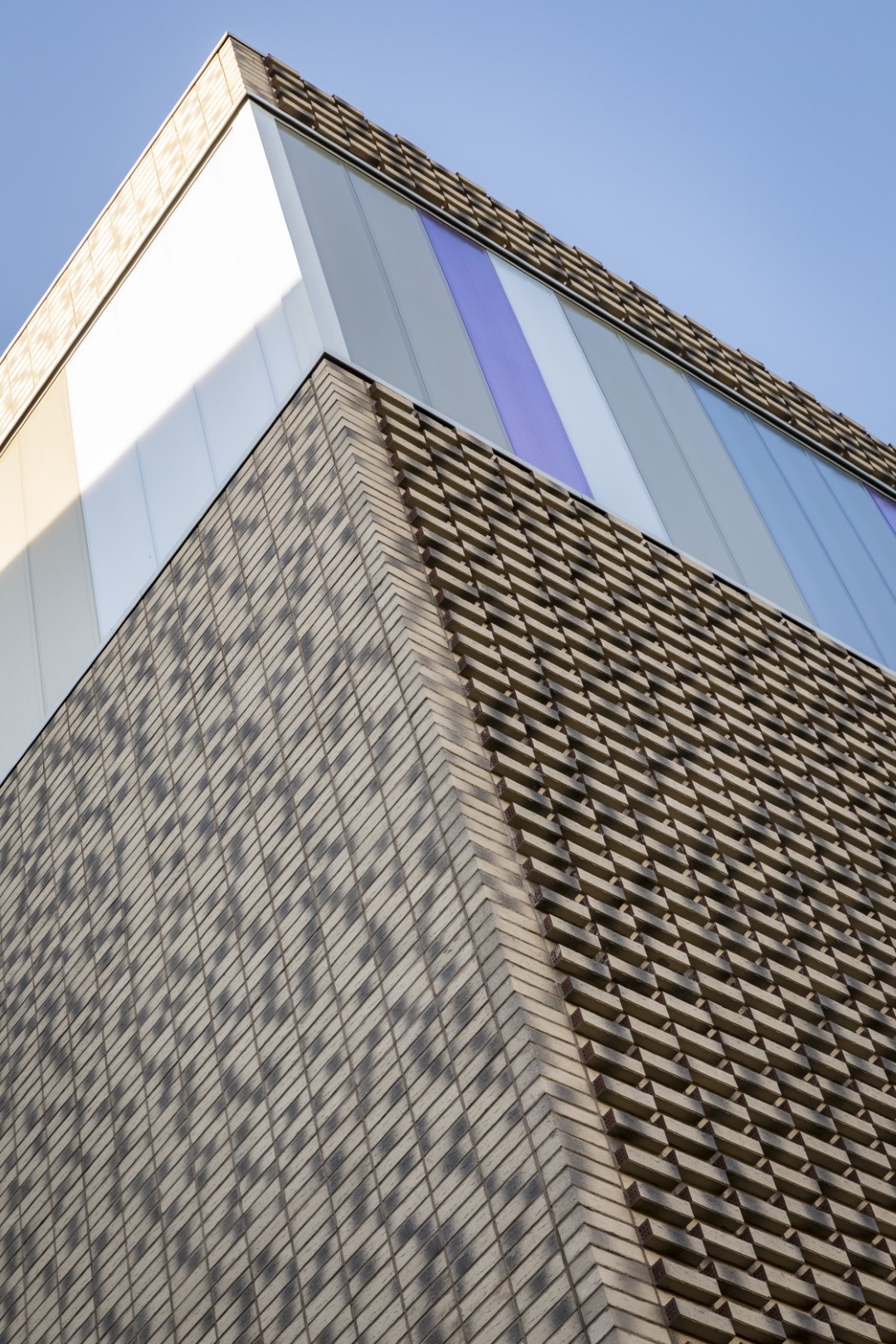

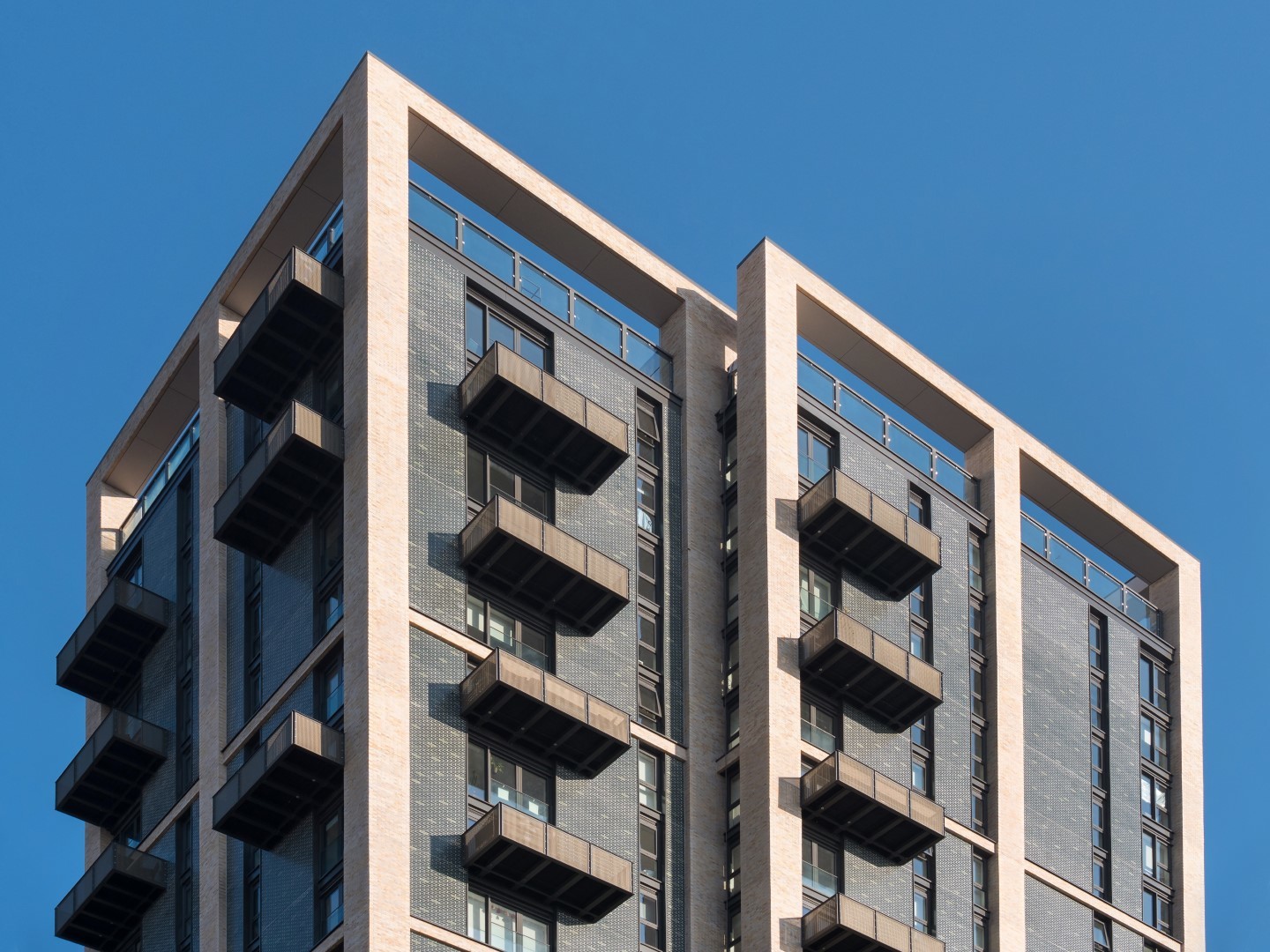

Gallery

Search our product colours

Use our colour tool to build an inspirational moodboard and find the perfect colour, texture or finish for your next project.

Alternatively, you can send your project drawings to our team here.

OR

OR

Taylor Maxwell Hop Exchange Office 23 Large

Three times faster. Mechanically fixed. Varied sub-structures. The Corium facade system delivers project efficiencies as standard.

Over & Above on Performance.

The Brick Tile Cladding System.

If you are interested in finding out more about our Brick Tile Cladding System and how it might work with your project, contact us on 0203 794 9377 or corium@taylor.maxwell.co.uk
